10 Ton Biomass Boiler Project in Beverage & Food
Capacity:10 tons
Pressure:1.25Mpa

The SZL10-1.25-T biomass water-tube steam boiler is a double-drums shop assembled chain grate boiler, rated evaporation 10t/h, rated steam pressure 1.25MPa. The rated steam temperature is 193°C and the fuel is biomass pellet, but it can co-firing with coal fuel. The beverage & food company is satisfied with its high efficiency and clean combustion.

Biomass steam boiler parameter:

Rated steam capacity: 10t/h
Rated steam pressure: 1.25Mpa
Rated steam temperature: 193℃
Feeding water temperature: 104℃
Cold air temperature: 20℃
Test pressure: 1.65MPa
The effective area of the chain grate: 12.2m2
the furnace volume: 35.3m3
Design efficiency: 80%
The excess air coefficient: 1.6

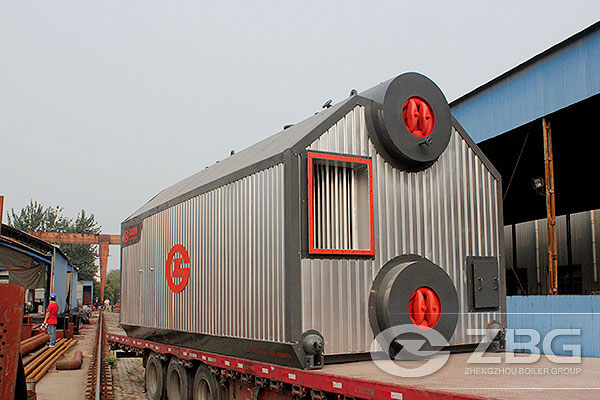

The boiler leaves the factory in two parts: the upper part includes the boiler proper, upper steel frame and upper furnace wall and the lower part includes coal bucket, chain grate, lower furnace wall and inner ventilating duct. Except the front and back arch and part of the brick walls are installed at site, the remaining parts all leave the factory in shop assembled form. The rear matching air-preheater and ventilating duct leave the factory together with the boiler. The rear dust collector and its connecting tubes are delivered according to contract.
