Biomass Power Plant Boiler
Capacity 10 - 75 t/ 7-52.5 MW
Pressure ≤5.29MPa
Firing biomass pellet, low fuel costs:

Biomass fuels like rice husk, straw in agriculturally advanced countries and regions is easy and cheap to collect.

Multi boiler types to choose:

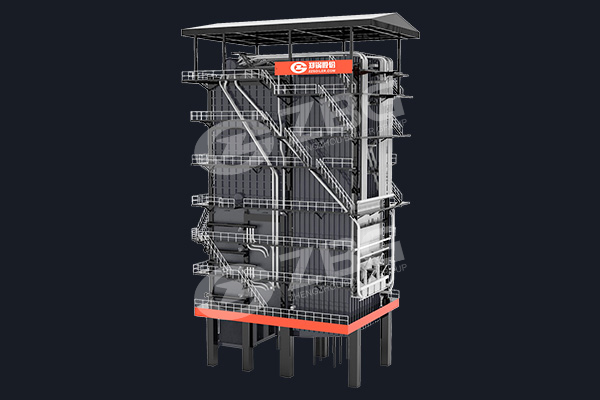

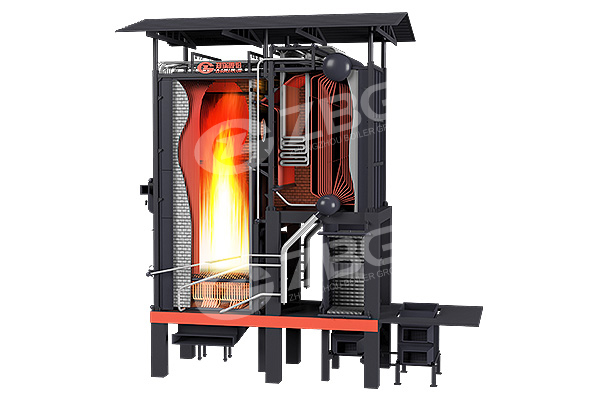

a. Corner tube type. Biomass fired corner tube power plant boiler has self-supporting structure, the problem relating to the expansion and the supporting of the boilers is tackled smartly. The supporting structure is stable and compact. Fuel is spaying into the furnace, mixture combustion of “layer combustion and suspension combustion”, high combustion efficiency.

b. Chain grate type. It adopts widthwise layout double drums structure, which totally overcomes the phenomenon of bulge by directly heating the drum in the furnace. The layout of the heating surface is more reasonable. The boiler grate adopts double layers or single layer layout structure, which can meet the customers’ requirements better.

c. CFB Type. The structure of a single drum boiler is horizontal” π” type layout.The use of patented technology and equipped with the independent device of roots blower to save power consumption.

Air preheater, avoiding corrosion:

 The air preheater use of a multi-tube box arrangement and low-temperature section use of corrosion-resistant steel to avoid the corrosion the parts by low temperature cause to replace the whole.

:
