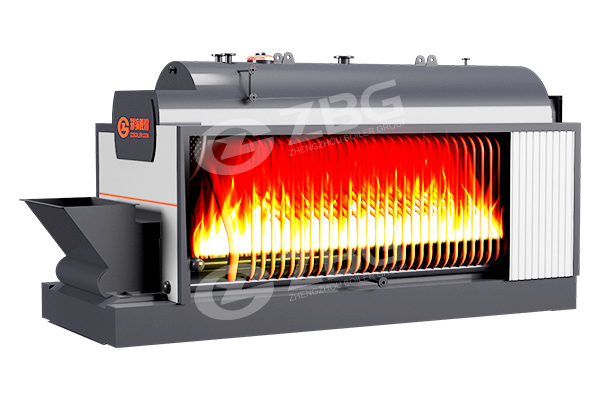

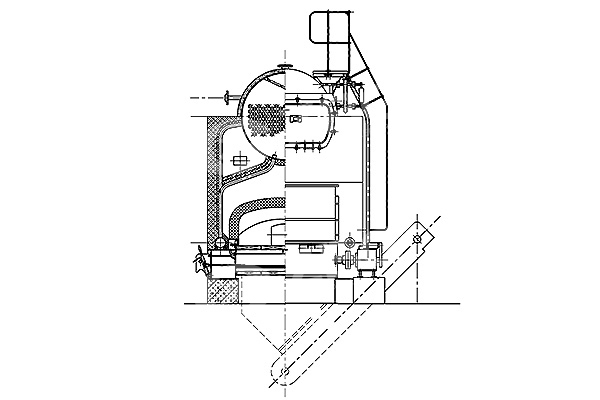

a. Longer fuel combustion period. Front arch is higher and shorter than rear arch, 45°angle between the two arches, which can extend the time of flue gas combustion time, and enhance thermal transferring efficiency;

b. Available to burn various biomass. It design can burn biomass fuels such as rice husk, wood, bagasse, straw, sawdust, sunflower shells, as well as low calorific value coal;

The side seal of the grate is advanced and reasonable, which can avoid the deficiency of side seal jammed grate and deficiency of side seal burned out. The boilers less than 4t/h adopt side seal cooling and angle iron reinforce plates, and more than 6t/h boiler adopt full touch side seal and down seal structure.

Separate adjustable wind chamber under the fire grate is equipped and wind is fed from two sides. It adopts new type crack screw wind adjustment structure so that the wind adjustment and ventilation cross section proportion is 100%. Thus, it is easy to adjust and the wind is distributed symmetrically.

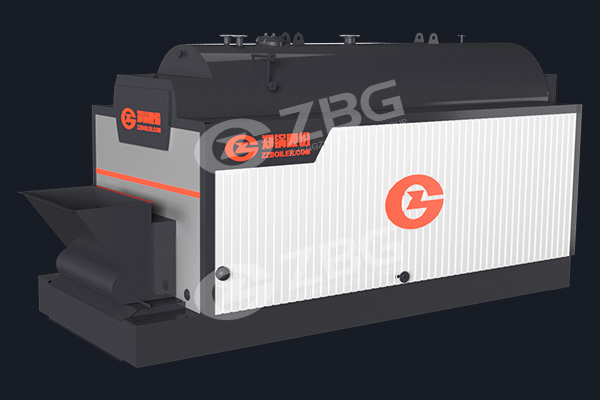

Light Weight and Compact Structure. It weights 10 to 20 ton, and low freight charge; small volume, compact structure.
